Powder Coating Bundle, Machine & Curing Oven

The ultimate powder coating bundle! Featuring the T-Mech 45L powder coating machine and curing oven!

This bundle is great for big projects - with the electrostatic powder coating machine having a large 45L powder capacity and the curing oven featuring 2 shelves with rails. Both are easy to use and come with a 12 month electrical warranty!

Powder coating is used to create a durable and high quality finish, which is great for tough machinery! Power coated products are more resistant to corrosion, fading and chipping so when done correctly it should last a very long time.

Powder coating is a dry finishing process using powder particles that are electrostatically charged and sprayed onto grounded metal work. After the coating is applied, you need to cure the parts using a powder coating curing oven.

Powder coating machines & ovens are used in a range of industries including auto parts, medical equipment, home appliances and much more!

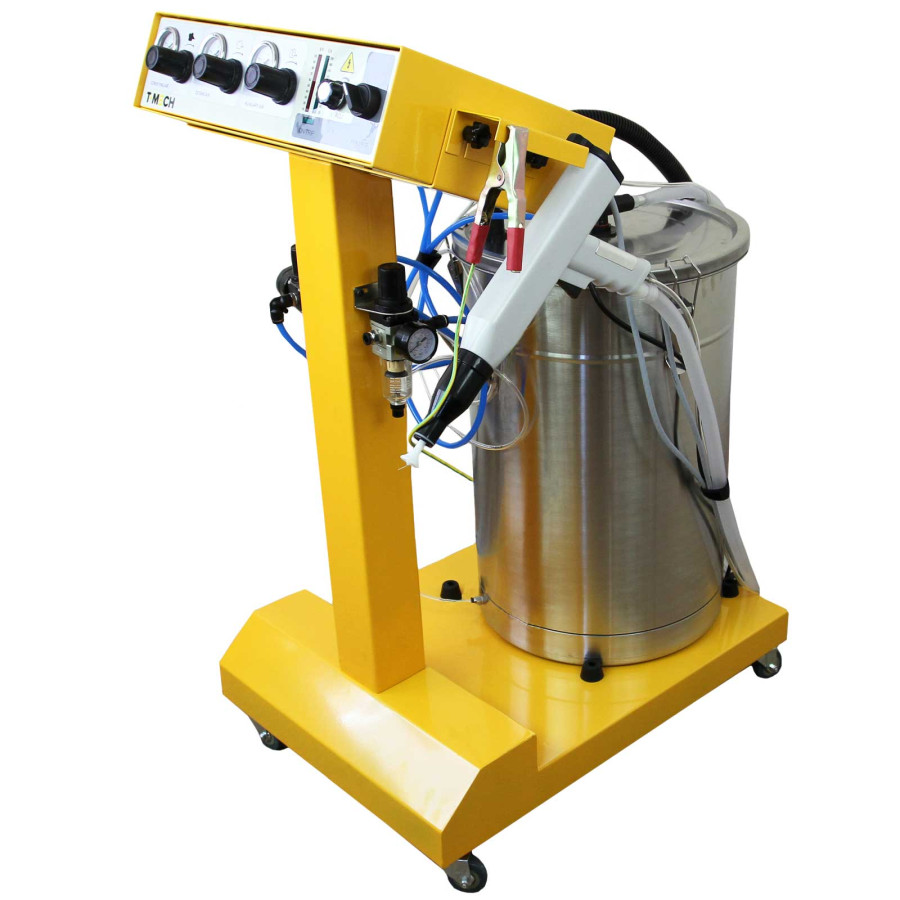

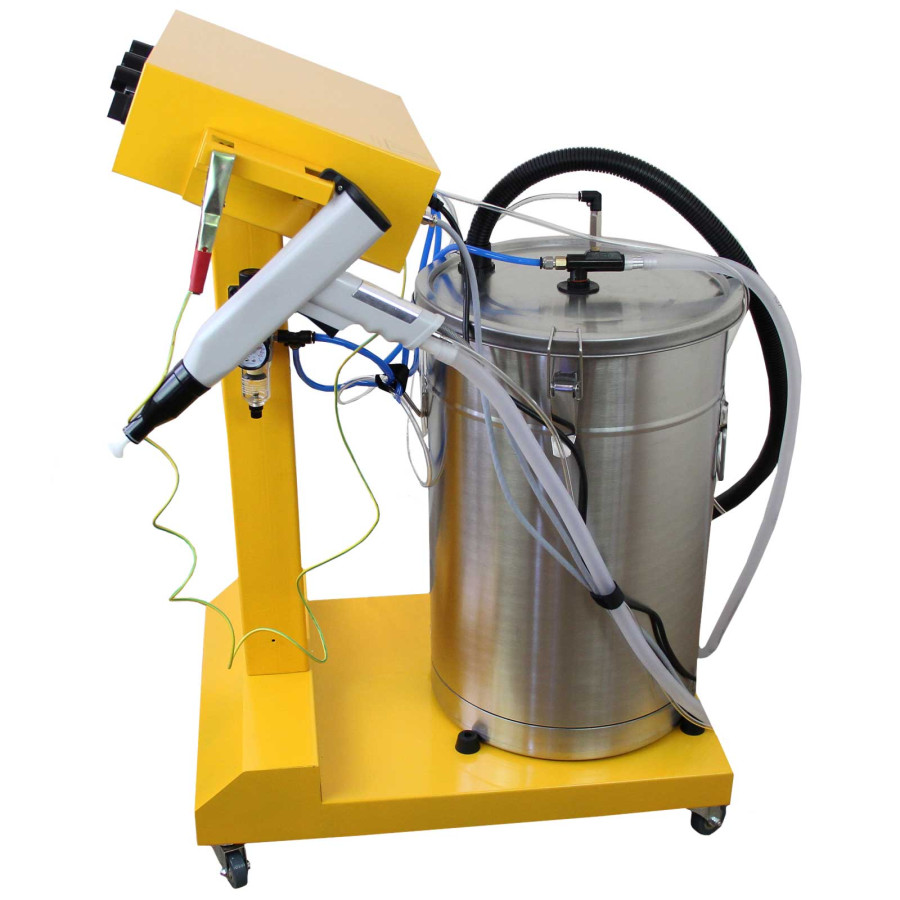

Powder Coating Machine

• Product features:
• Easy to navigate control panel
• Includes 1 spray gun
• Comes on wheels making it fully portable
• 12 month electrical warranty
• CE Approved
• Dimensions: 74cm (H) x 65cm (W) x 50cm (D)

Specifications:

• Input Power Voltage: 220V – 230V AC
• Frequency: 50Hz-60Hz
• Input Power: 40W
• Electromagnetic valve control power voltage: 24V DC
• Input Air Pressure: 0-0.6Mpa
• Output Air Pressure: 0-0.5Mpa
• Max. Air Consumption: 13.2m3/h
• Output Powder Volume: Max. 600g/min
• Output Powder Voltage: 0-100KV
• Output Current: 0-150uA
• Powder Hopper Volume: 45L

Electrical data

• Nominal input voltage: 200-240V
• Rated output voltage (to gun): 24V
• Rated output current (to gun): 1.2A
• Protection type: IP54
• Temperature range: 0 °C -+40 °C (+32 °F - +104 °F)
• Solenoid Valve Voltage: DC24V
• Gun output voltage: 0-100KV
• Gun output current: 0-150uA

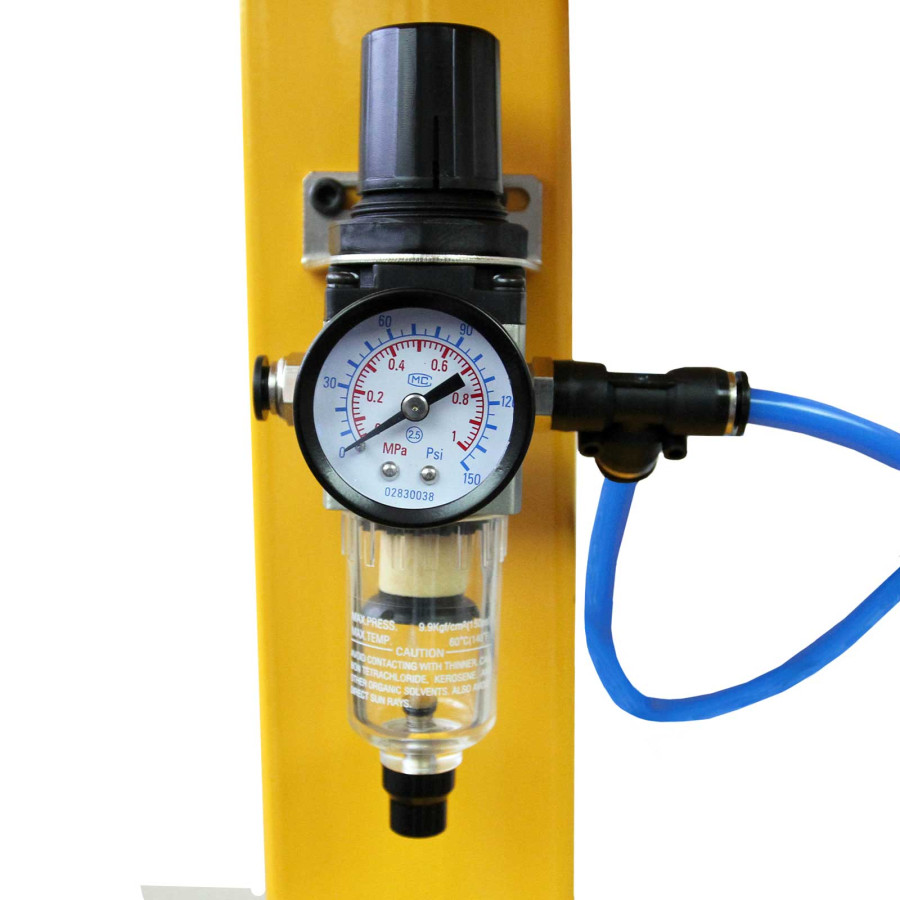

Pneumatical data

• Max.input pressure: 0.8Mpa
• Min.input pressure: 0.5Mpa
• Output pressure: 0.8Mpa
• Max.water vapour content of the compressed air: 1.3g/m3
• Max.oil vapour content of the compressed air: 0.1mg/m3
• Max.compressed air consumption: 13.2m/h（0.4MPa)

Gun Parameter

• Input: 24V
• Voltage Frequency: Around 25KHZ
• Input Current: 1.2A
• Output Voltage: 0~100KV DC
• Max.Output powder volume：Around 600G/MIN
• Gun cable: 6M
• Gun weight: 460G
• Container Capacity: 45L

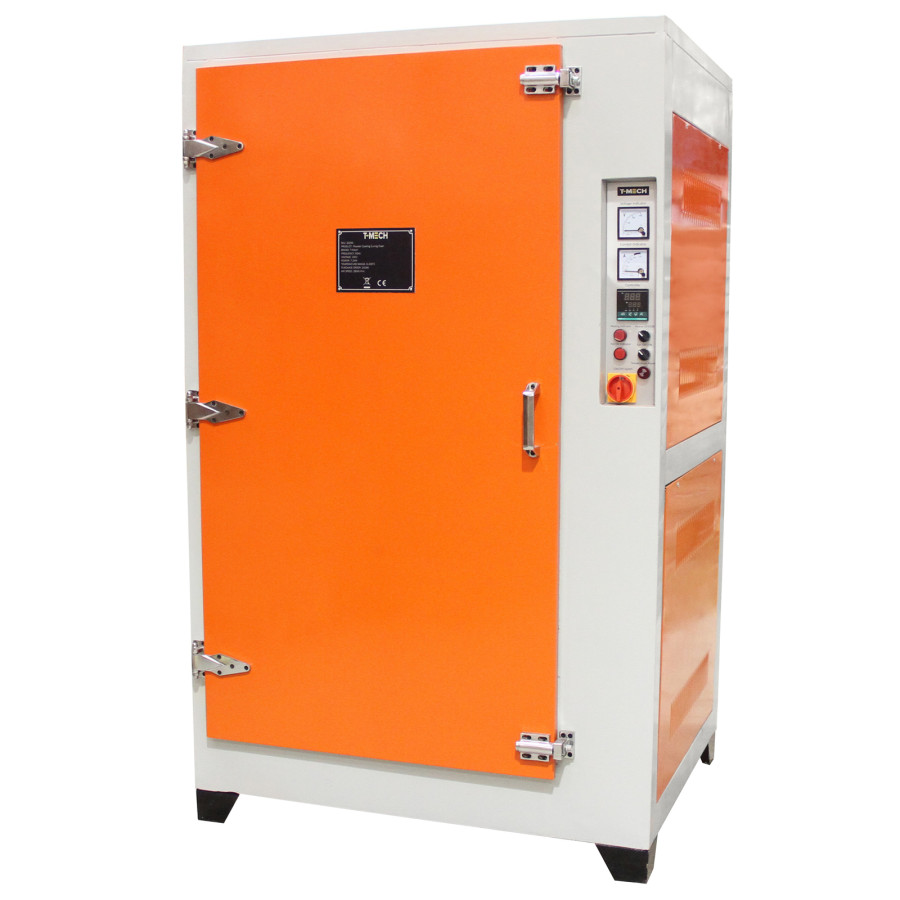

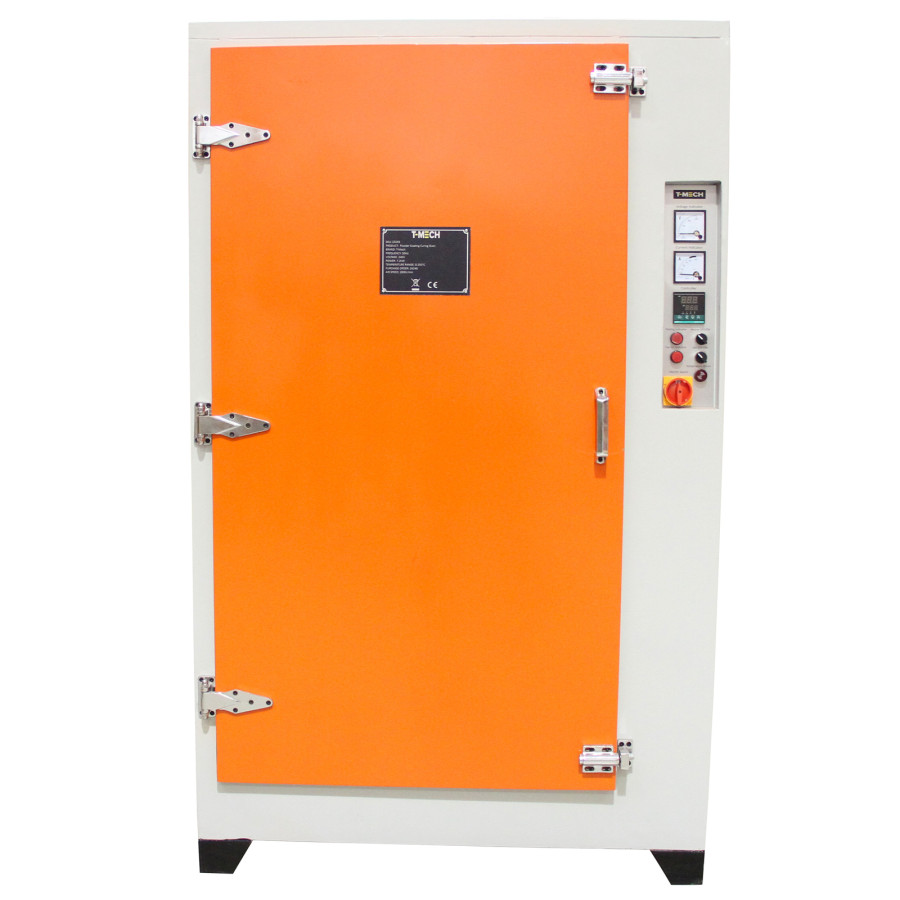

Powder Coating Curing Oven

• Powerful 7.2KW curing oven with double shelf
• New and improved Control Panel makes curing quick and easy
• Bolt Lock system for maximum safety
• This product can and should be wired to a 32AMP plug
• Four shelves and two rails per shelf
• FREE 12 month electrical parts warranty

Specifications:

• Voltage: 230V / 50Hz Fan
• Power: 60W x 2
• Temperature Range: 0-250 C
• Air Speed: 2800rpm
• Power: 7.2KW
• Temperature Stability: +/-5 Insulated Plate: 7-8cm Insulation: High temperature silicon cotton
• Dimensions: 199cm (H) x 121.5cm (W) x 101.8cm (D)
• Internal Dimensions: 160cm (H) 84.5cm (W) x 84.5cm (D) Material: Steel, Iron, Plastic

Please be aware that the paintwork on this oven may have some slight cosmetic damage.

---
