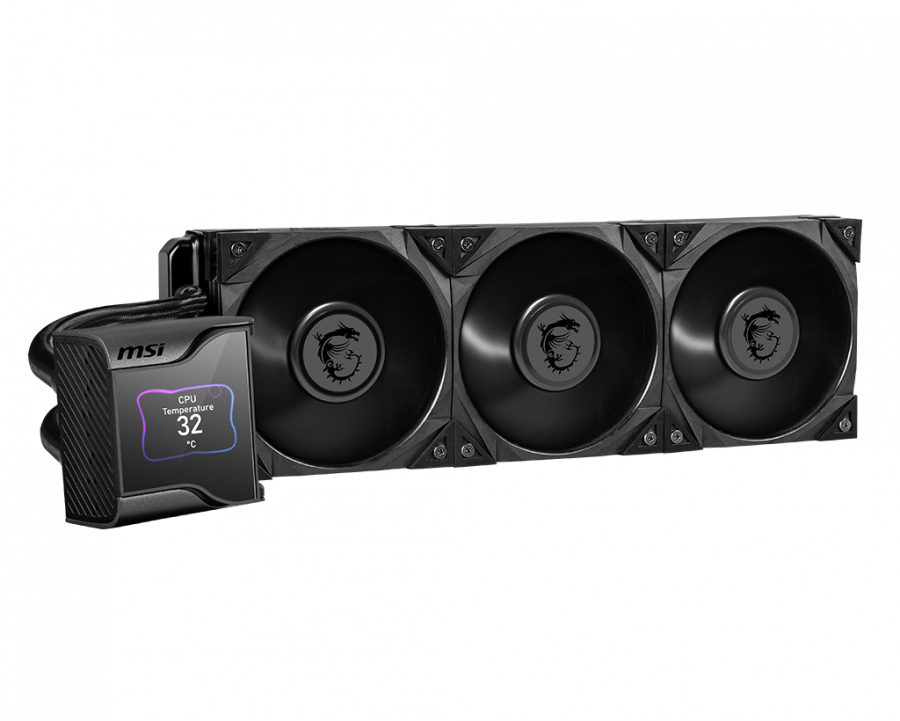

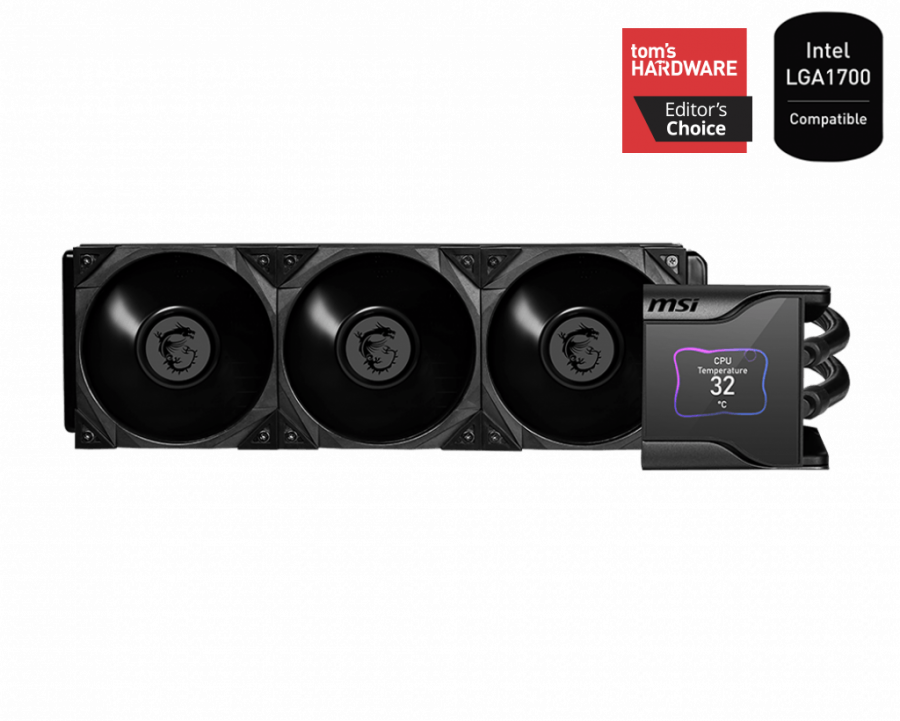

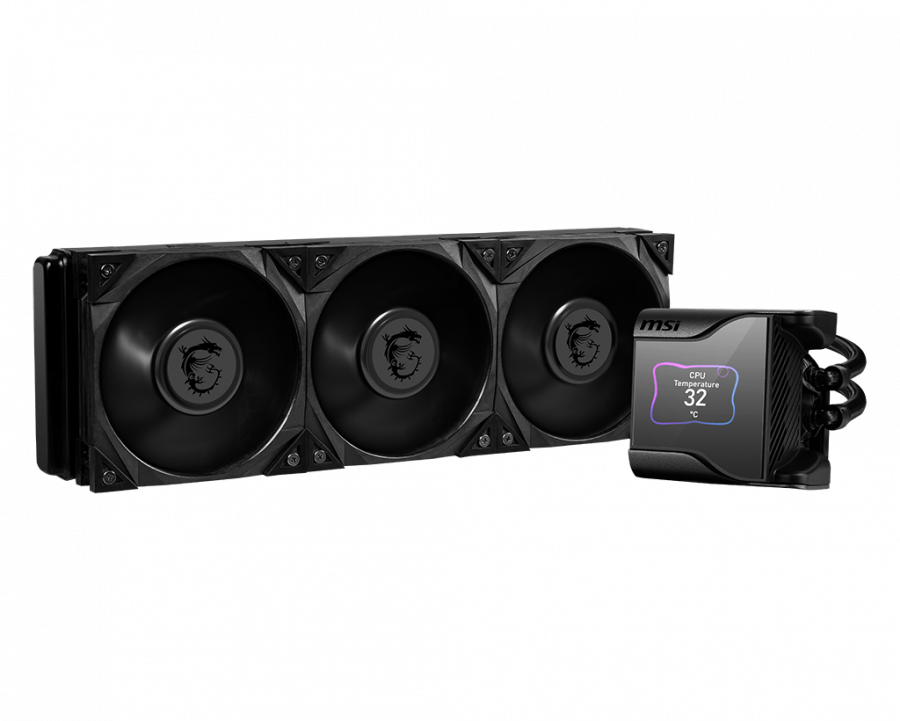

MSI MEG Coreliquid S360 CPU Cooler

The MEG CORELIQUID S Series is here to provide the ultimate silence cooling. It is equipped with MSI's innovative MEG SILENT GALE P12 silent gaming fan and supports 0 rpm fan mode. The 2.4” IPS display can also help you see a conglomerate of hardware information or customizable graphics and videos. The MEG CORELIQUID S Series descends from the top, and you just can’t hear it coming.

Details

SILENT COOLING
MSI’s MEG SILENT GALE P12 provides sufficient airflow to the radiator for cooling while maintaining low noise levels.

MEG SILENT GALE P12
The MEG SILENT GALE P12 is MSI’s innovative silent fan designed to generate the most silent airflow.

CONCENTRATED COOLING PERFORMANCE
A 60mm fan is placed within the water block to help dissipate heat for the M.2 SSD, CPU VRMs, and surrounding components.

FAN 0 RPM
The MEG SILENT GALE P12 and the water block fan support 0% RPM to ensure zero noise under low temperatures.

2.4” CUSTOMIZABLE IPS DISPLAY
The MEG CORELIQUID S Series comes with a 2.4” IPS display capable of displaying hardware information, GIF, MP4, photos, texts, and live weather information.

TOTAL CONTROL IN YOUR HANDS
Everything ranging from MEG CORELIQUID S Series’ fan speed to the IPS display can be adjusted through the MSI Center.

LGA 1700 COMPATIBLE
The MEG CORELIQUID S Series liquid cooler provides out of box support for LGA 1700.

EVAPORATION PROOF TUBING
Constructed with three layers of netted plastic tubing and a reinforced mesh exterior.

Specifications

Radiator Size 360 mm
Radiator Dimensions (WxDxH) 394 x 120 x 27 mm / 15.5 x 4.7 x 1.06 inches
Radiator Material Aluminum
Water Cooling Tube Material Black Rubber + Mesh
Water Cooling Tube Length 400 mm
Number of Fans 3
Fan Dimensions (WxDxH) 120 x 120 x 25 mm / 4.7 x 4.7 x 0.98 inches
Fan Speed 0 ~ 2000 RPM
Fan Air Flow 56.2 CFM
Fan Noise Level 22.7 dBA
Fan Static Pressure 2.21 mm H2O
Fan Bearing Hydro-Dynamic Bearing
Fan Life Expectancy 50,000 Hours
Fan Rated Current 0.4 A (MAX)
Fan Power Consumption 4.8 W (MAX)
PWM Mode Yes
Cable Length (PWM Cable) 350 mm / 13.78 inches
Fan Connector 4 pin PWM
Pump Life Expectancy 50,000 Hours
Pump Noise Level 21.2 dBA
Pump Rated Current 0.33A
Pump Power Consumption 4W
Pump Speed 2800 +/-300 RPM (PWM controlled)
Pump Connector 4 pin PWM
Cold Plate Material Copper
Block Dimensions (WxDxH) 95 x 95 x 83.53 mm
Intel Socket Support
"LGA 1700 / 1200 / 1151 / 1150 / 1155 / 1156 / LGA 2066 / 2011-3 / 2011"
AMD Socket Support
"AM4 / AM3+ / AM3 / AM2+ / AM2 / FM2+ / FM2 / FM1 / Socket TR4 / sTRX4 / SP3"
Panel Size 2.4"
Panel Type IPS
Panel Resolution 320 x 240
Panel Colour Depth 16 bits
Panel Brightness 500 nits
Interface Connector USB 2.0 pin header
Power Connector SATA
