MSI GeForce RTX™ 4070 SUPER 12G GAMING X SLIM Graphics Card

GeForce RTX 4070 SUPER 12G GAMING X SLIM
SLIM DESIGN, MIGHTY ACTION
GAMING SLIM series is a thinner variant of GAMING series while maintaining high performance capabilities and aggressive looks.

• NVIDIA GeForce RTX 4070 SUPER GPU (Factory Overclocked) with Ada Lovelace architecture, 3rd gen Ray Tracing Cores, & DLSS 3
• 2640 MHz Boost Clock & 12 GB of GDDR6X VRAM (21 Gbps) & MSI Center extreme OC (2655 MHz)

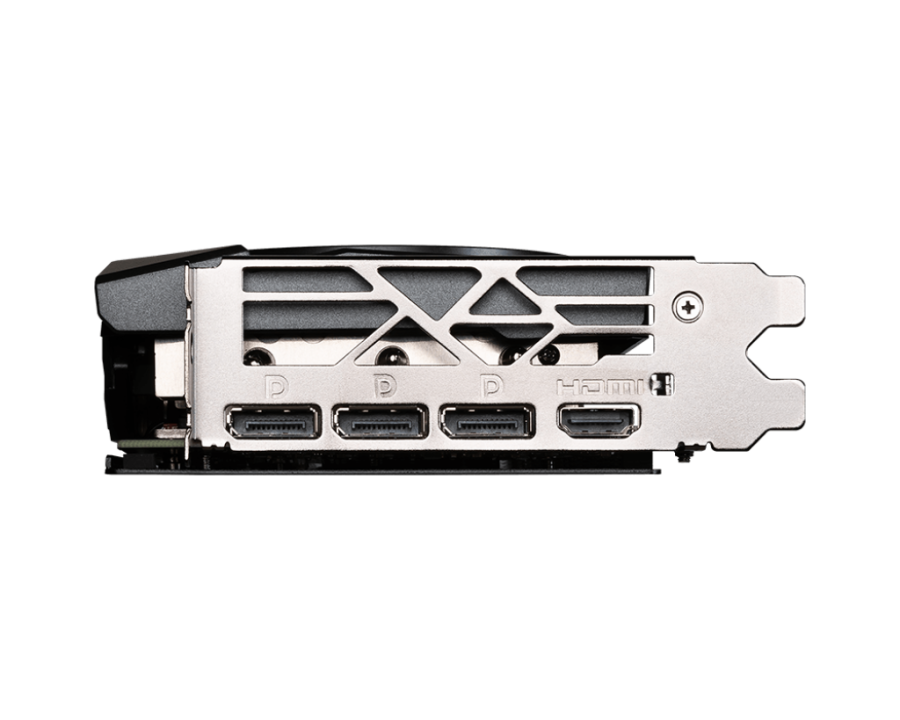

• 3 x DisplayPort 1.4a & 1 x HDMI 2.1a (4K/120Hz HDR, 8K/60Hz HDR, and Variable Refresh Rate)
• TORX Fan 5.0 technology, dual ball-bearing durability & ZERO FROZR (0 RPM) mode
• Copper GPU baseplate & precision-engineered square-section contact heat pipes
• Airflow Control heatsink with Wave-Curved 2.0 fins
• Support bracket included
• Aluminium backplate & ARGB Lighting

Features

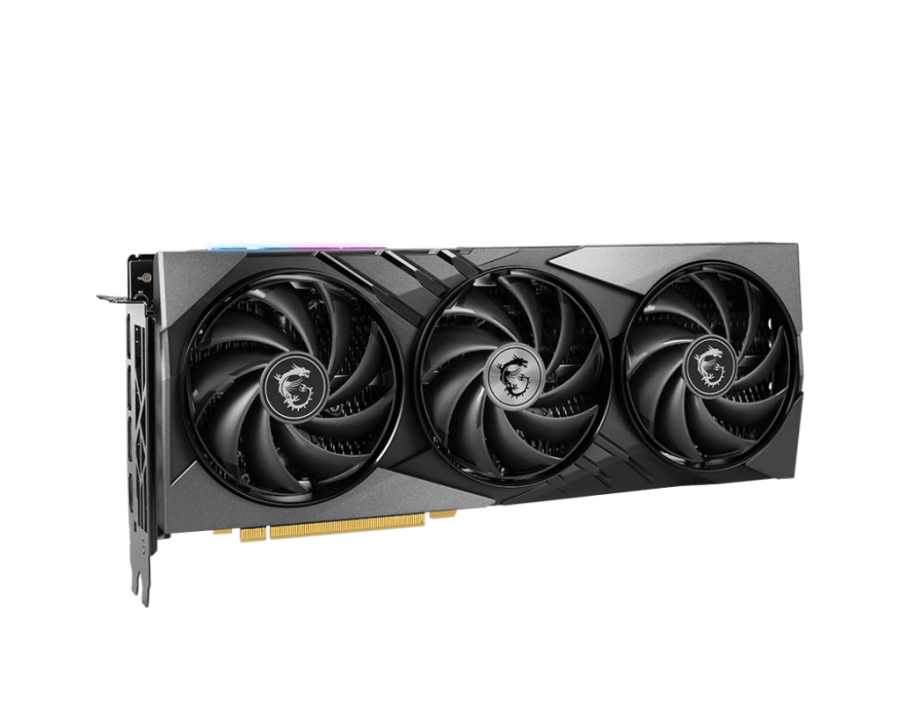

TRI FROZR 3 THERMAL DESIGN
Stay cool and quiet. MSI’s TRI FROZR 3 thermal design enhances heat dissipation all around the graphics card.

TORX FAN 5.0
Fan blades linked by ring arcs and a fan cowl work together to stabilize and maintain high-pressure airflow.

COPPER BASEPLATE FACING THE HEAT HEAD-ON
Heat from the GPU and memory modules is captured by a copper baseplate and then rapidly transferred to Core Pipes.

KEEPING THE CORE COOL
Core Pipes are precision-crafted to make maximum use of the available space. A squared section of heat pipes fully touch the GPU baseplate to then spread heat along the full length of the heatsink.

AIRFLOW CONTROL
Airflow Control improves airflow dynamics through the Wave Curved 2.0 and updated deflectors for optimizing the balance between cooling and quieter acoustics.

UNRESTRICTED COOLING

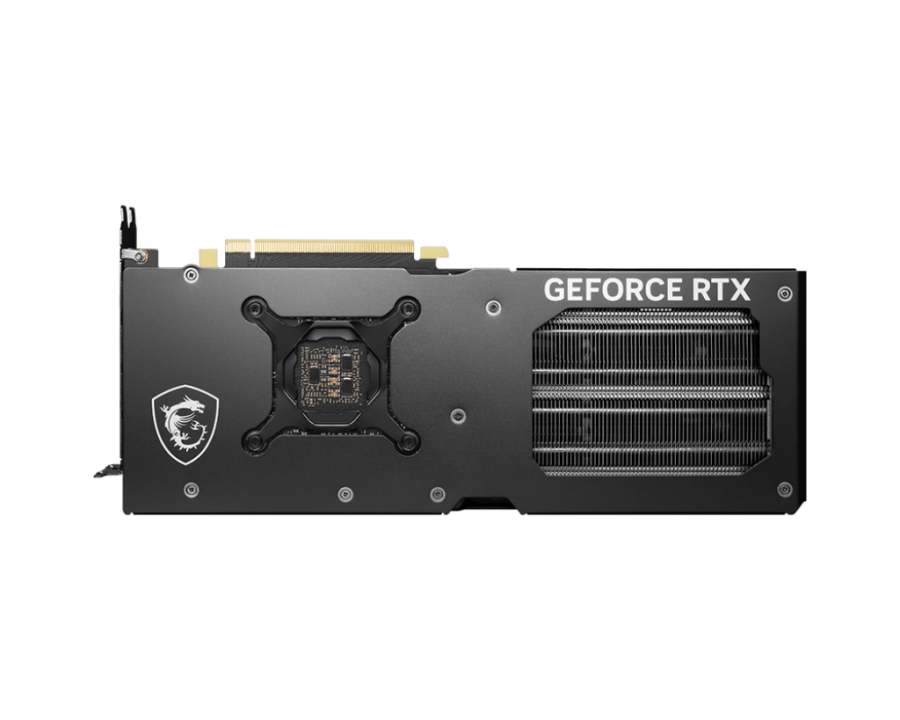

A large airflow vent on the backplate allows exhaust air to pass through directly.

Ray Tracing
The Ada architecture unleashes the full glory of ray tracing, which simulates how light behaves in the real world. With the power of RTX 40 Series and third-gen RT Cores, you can experience incredibly detailed virtual worlds like never before.

NVIDIA DLSS 3
DLSS is a revolutionary breakthrough in AI-powered graphics that massively boosts performance. Powered by the new fourth-gen Tensor Cores and Optical Flow Accelerator on GeForce RTX 40 Series GPUs, DLSS 3 uses AI to create additional high-quality frames.

Data Sheet

GeForce RTX 4070 SUPER 12G GAMING X SLIM Data Sheet
