Elgato Wave XLR

Microphone Interface & Digital Mixing Solution

BRING YOUR MIC
You love your XLR microphone. You’ll love it even more with Wave XLR, a compact USB interface that gives your mic superpowers.

All in One, And More
Wave XLR does the work of multiple devices and packs features you won't find in conventional audio interfaces. Like propietary anti-distortion technology, a capacitive mute button, direct integratin with custom Wave Link mixing software, and an interchangeable faceplate.

More

Multifunctional Control Dial
- Set input gain
- Adjust output volume
- Crossfade between mic and PC mix
- Toggle phantom power

Capacitive Sensor
Tap to Mute

XLR Input
Connect your Microphone

High-Power Headphone Output
Crystal Clear, zero latency monitoring

USB Type-C
State of the art connection

Plenty of power
Give your mic the boost it needs without an external preamp. Up to 75 dB of ultra-low-noise gain makes notoriously insensitive dynamic mics sound loud and clear, while 48 volts of phantom power bring condenser mics to life.

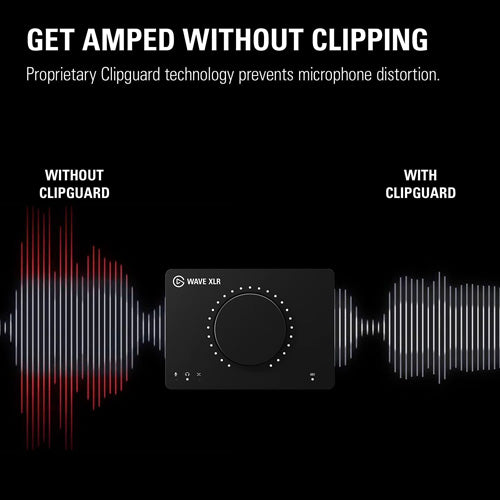

Get amplified without clipping
Now you don't need to watch levels while live, nor attempt to salvage distorted audio in post production. When input levels peak proprietary Clipguard technology instantly reroutes sound through a second signal path that runs at a lower volume. The result is clean audio output, no matter how loud you scream!

Wave Link
Intuitive software custom built for content creation, Wave Link gives you ultimate control of your Twitch stream, YouTube video or podcast audio.

Multi-Channel Command
Game audio, voice chat, music, alerts, samples, multiple mics* and more. Independent input channels let you blend audio sources in real time.
*Multiple Wave mics are not supported at this time

Your Workflow, Evolved.
Stream Deck works seamlessly with Wave Link to give you complete studio control. Easily set keys to mute sources, adjust levels and skip tracks — anything. Or create Multi Actions to adjust audio, lighting and camera settings simultaneously — all with a single tap. It’s advanced A/V automation at your fingertips. Tactile and fully customizable. A hybrid mixing solution like no other.

Specifications

FREQUENCY RESPONSE
20 Hz - 20 kHz

DYNAMIC RANGE
100 dB (120 dB Clipguard engaged)

EQUIVALENT INPUT NOISE (EIN)
-130 dBV @ 60 dB gain

GAIN RANGE
0 - 75 dB

PHANTOM POWER
48 VDC, 7mA

MAXIMUM INPUT LEVEL
10 V @ 0 dB gain (Clipguard engaged)

MAXIMUM OUTPUT LEVEL
77 mW

RESOLUTION
24-bit

SAMPLE RATE
48 / 96 kHz

INTERFACE
USB-C

In The Box

Wave XLR, USB-C Cable (250 cm / 98.4 in), Quick Start Guide
